Foam Ceramic Plate – High-Performance Filtration & Thermal Insulation Material


Introduction:

Foam Ceramic are mainly used for filtration of aluminium and aluminium alloys in foundries and cast houses . With their excellent thermal shock resistance and corrosion resistance from molten aluminum, they can effectively eliminate inclusions, reduce trapped gas and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit.



Size available:

 7", 9", 12", 15", 17", 20", and 23", with porosities from PPI 10 to PPI 60(PPI ie pores per inch).

Other special sizes could be produced on request.


Foam Ceramic Plate – High-Performance Filtration & Thermal Insulation Material

The Foam Ceramic Plate is a porous ceramic material with a high-strength, lightweight structure. It is widely used in metal filtration, thermal insulation, and environmental protection applications due to its excellent high-temperature resistance, chemical stability, and filtration efficiency.

Key Features & Advantages:

  • High Porosity & Permeability

    • Provides efficient filtration by trapping impurities and inclusions in molten metal and gases.

  • Excellent Thermal Shock Resistance

    • Withstands sudden temperature changes without cracking, making it ideal for high-temperature environments.

  • Superior Mechanical Strength

    • Durable and resistant to mechanical stress and deformation during use.

  • Good Chemical Stability

    • Resistant to corrosion by acids, alkalis, and molten metals, ensuring long service life.

  • Lightweight & Energy-Saving

    • Low density reduces overall weight, improving thermal efficiency and energy savings.

Applications of Foam Ceramic Plate:

  1. Molten Metal Filtration

    • Removes inclusions and impurities from aluminum, steel, iron, and copper in casting industries.

  2. Thermal Insulation & High-Temperature Applications

    • Used in kilns, furnaces, and combustion chambers for heat conservation.

  3. Environmental Protection & Air Purification

    • Applied in catalyst supports, exhaust gas filtration, and industrial waste treatment.

  4. Chemical Processing

    • Used as porous carriers for chemical reactions and gas separation.

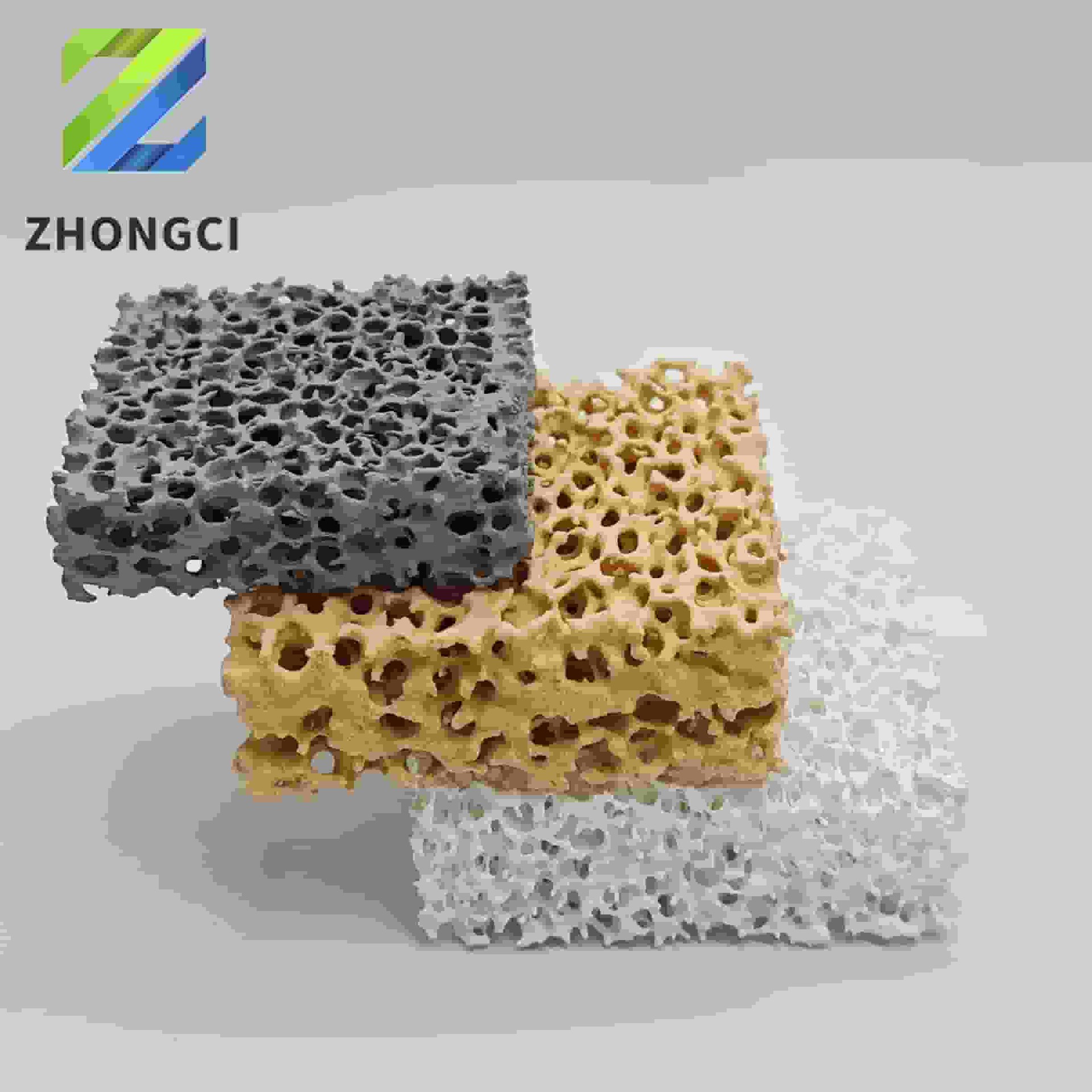

Material Specifications

 Material

 ZrO2

 SiC

 Al2O3

 Colour

 Yellow

 Grey Black

 white

 ore density (ppi)

 10~60

 10~60

 10~60

 Porosity (%)

 80~90

 80~90

 80~90

 Operating temperature(°C)

 1700

 1500

 1100

 Compression Strength(MPa)

 1.2

 0.9

 0.8

 Density(g/cm3)

 0.90-1.50

 0.35-0.50

 0.30-0.45

 Thermal Shock Resistance(1100-20°C)

 >6 times

 >6 times

 >6 times

 Application

 steel

 iron

 Non-Ferrous Alloy and Aluminium


 Alumina Physical Properties:

 Working

 ≤1200°C

 Porosity

 80~90%

 Compression Strength
 (Indoor Temperature)

 ≥1.0Mpa

 Volume Density

 ≤0.5g/cm3

 Thermal Shock Resistance

 800°C---Indoor temperature 5 times

 Application

 non-ferrous and alumina alloys,
 high temperature gasfilter,
 chemical fillings and catalysis carrier



Pouring Rate and Filtration Capacity

1) Alumina Ceramic Foam Filters

Dimensions(mm)

Dimensions(inch)

Pouring Rate(kg/s)

Filtration Capacity(ton)

178x178x50

7x7x2

0.2-0.6

5

228x228x50

9x9x2

0.3-1.0

10

305x305x50

12x12x2

0.8-2.5

15

381x381x50

15x15x2

2.2-4.5

25

430x430x50

17x17x2

3.0-5.5

35

508x508x50

20x20x2

4.0-6.5

45

585x585x50

23x23x2

5.0-8.6

60



2) Zirconia Ceramic Foam Filters

Dimensions(mm)

Pouring Rate(kg/s)

Filtration Capacity(kg)

50x50x22

3-5

30

50x75x22

4-6

40

75x75x22

7-12

60

75x100x22

8-15

80

100x100x22

14-20

100

D50x22

2-6

18

D80x22

6-10

50

D90x22

8-16

70



3) Silicon Carbide Ceramic Foam Filters

Dimensions (mm)

Pouring Rate(kg/s)

Filtration Capacity(ton)

Grey Iron

Ductile Iron

Grey Iron

Ductile Iron

40x40x22

4

3

65

32

50x50x22

6

4

100

52

75x50x22

9

6

150

75

75x75x22

14

9

220

100

100x50x22

12

8

200

100

100x75x22

18

12

300

150

100x100x22

25

16

400

200

150x150x22

50

36

900

450

 We have a lot of size,welcome you send us enquiry.
